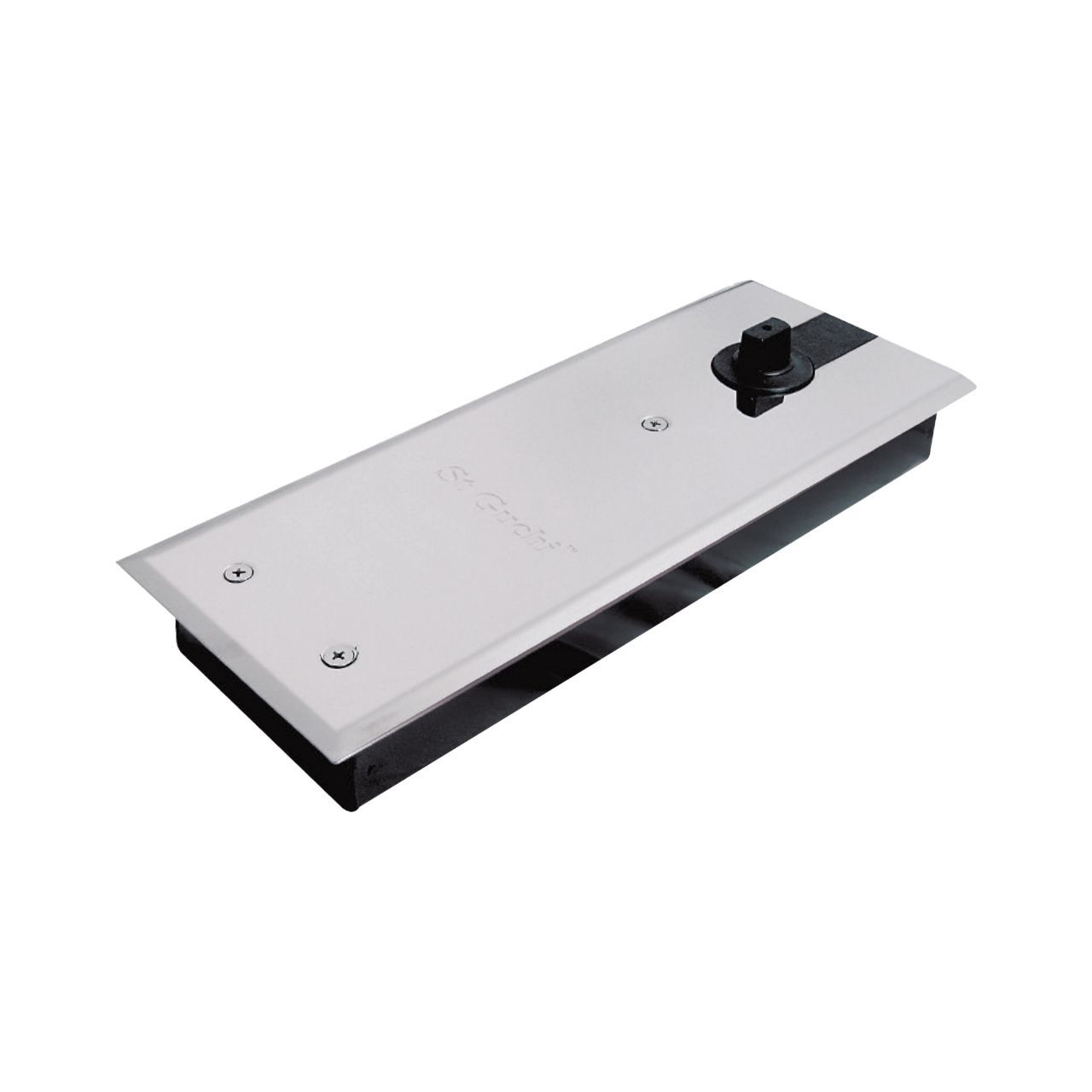

SGWGL-SGFS 750

Technical Information & Function:
Closing Force (N•m) 0º - 4º: 26 - 37
Width of Door (mm) Max: 1200
Weight of Door (kg) Max: 120
Max Open Angle: 130º
Closing SpeedAdjustment:

• Speed 1: 90º - 15º
• Speed 2: 15º - 0º

Removable Spindle: Optional
Applicable Temperature: -30ºC - 15ºC
Applicability: Wooden, glass & aluminium door etc. Left-open, right-open, single-side open or both-side open.
Weight (kg): 5.3
Dimension of Cement Box (mm): 305 (L), 108 (W), 40.5 (H)
Passed Durability Test: 500,000 Cycles
