SGDC-51H
Door Closer

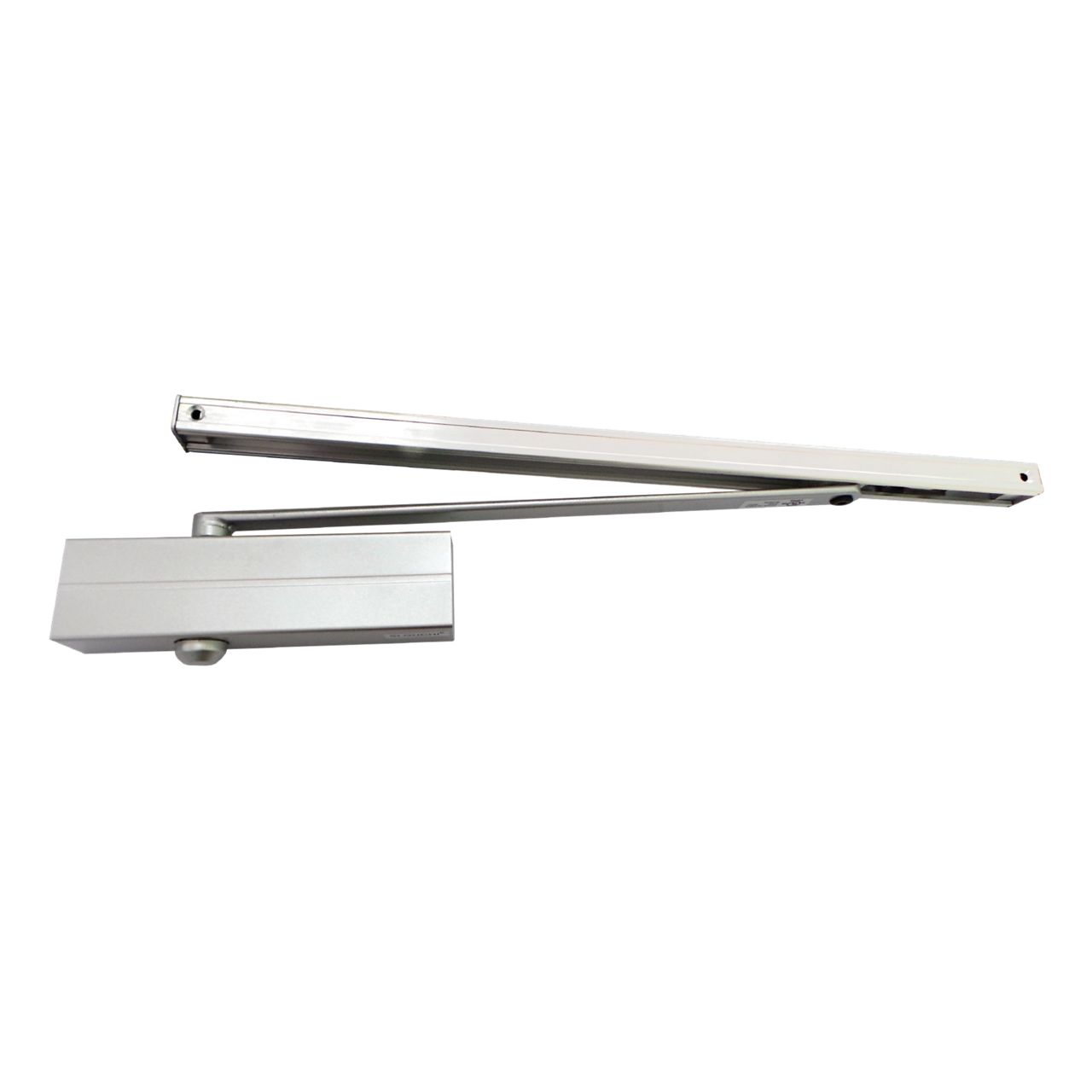

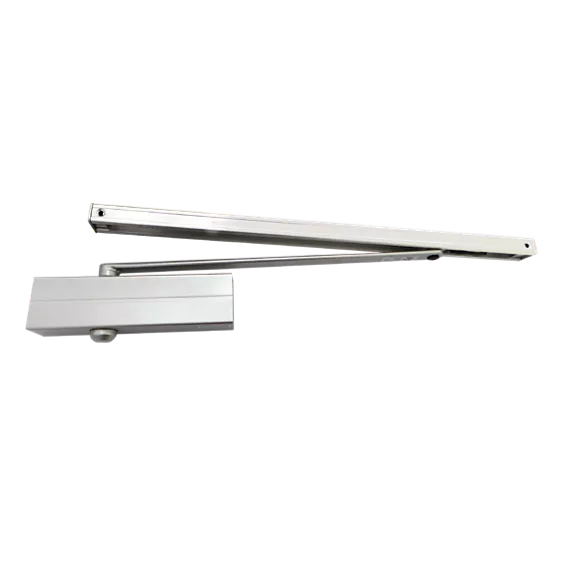

SGDC-92SA
Material: Die casting aluminium body
Arm Type: Slide Arm
Features:
- Adjustable closing & latching speed
- European style designed heavy duty closer for commercial use.
- 2 speed valves on the front of door closer body hidden under of slide cover.
- For single action doors; max 950 mm.
Technical Information & Function:
Width of Door (mm) Max: 950
Weight of Door (kg) Max: 65
Delay Action: No
Backcheck Function: Optional
Max. Open Angle: 140°
Hold - Open: Degree Adjustable
Closing Speed Adjustment:- Speed 1: Max Open Angle ~ 10°
- Speed 2: 10° ~ 0°
Applicable Temperature: ~30°C~60°C
Applicability: Can be used for left and right-hand doors
Fire Door: No

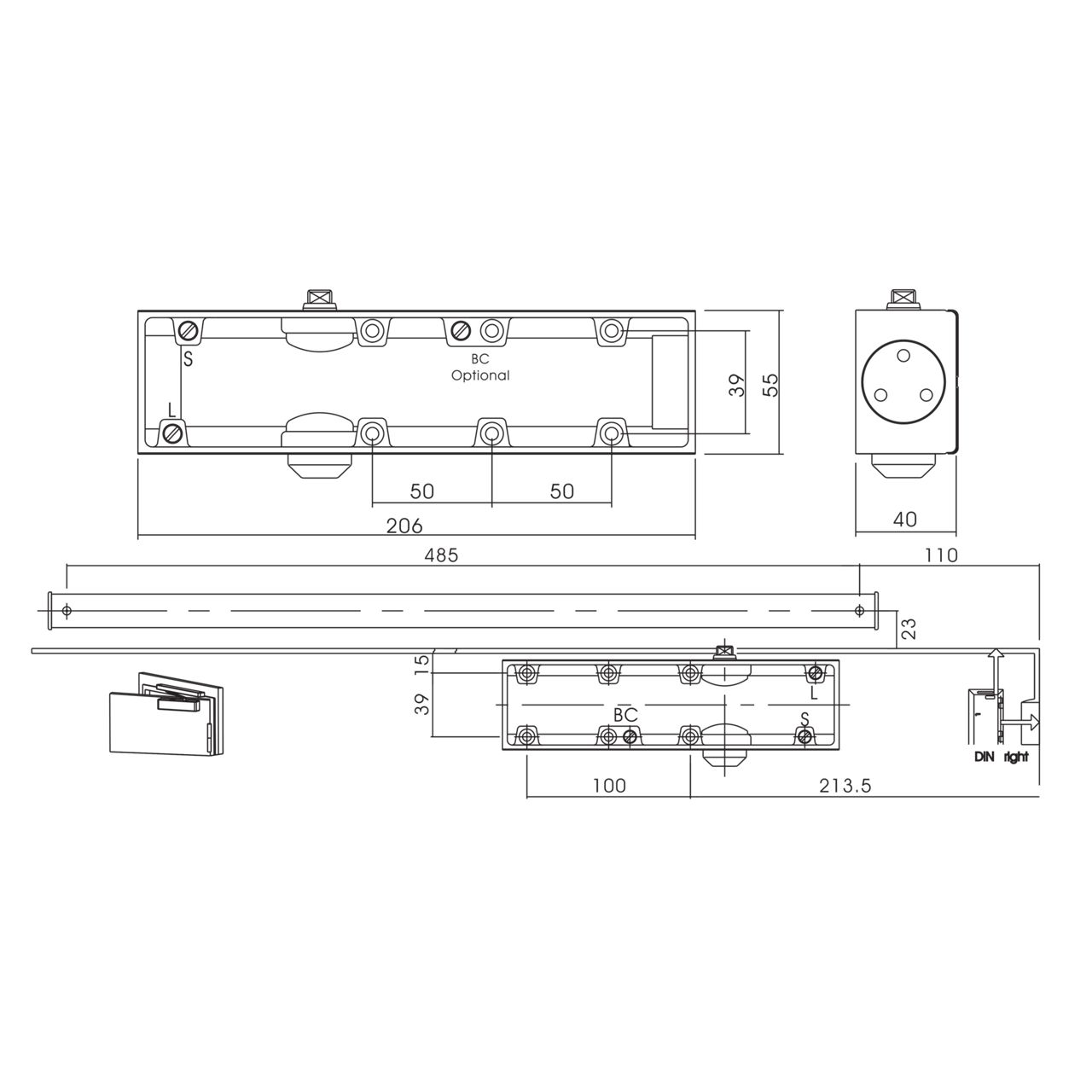

Dimension of Main Body:- Length: 206
- Width: 55
- Height: 40
Weight (kg): 2.1
Passed Durability Test: 500,000 Cycles
