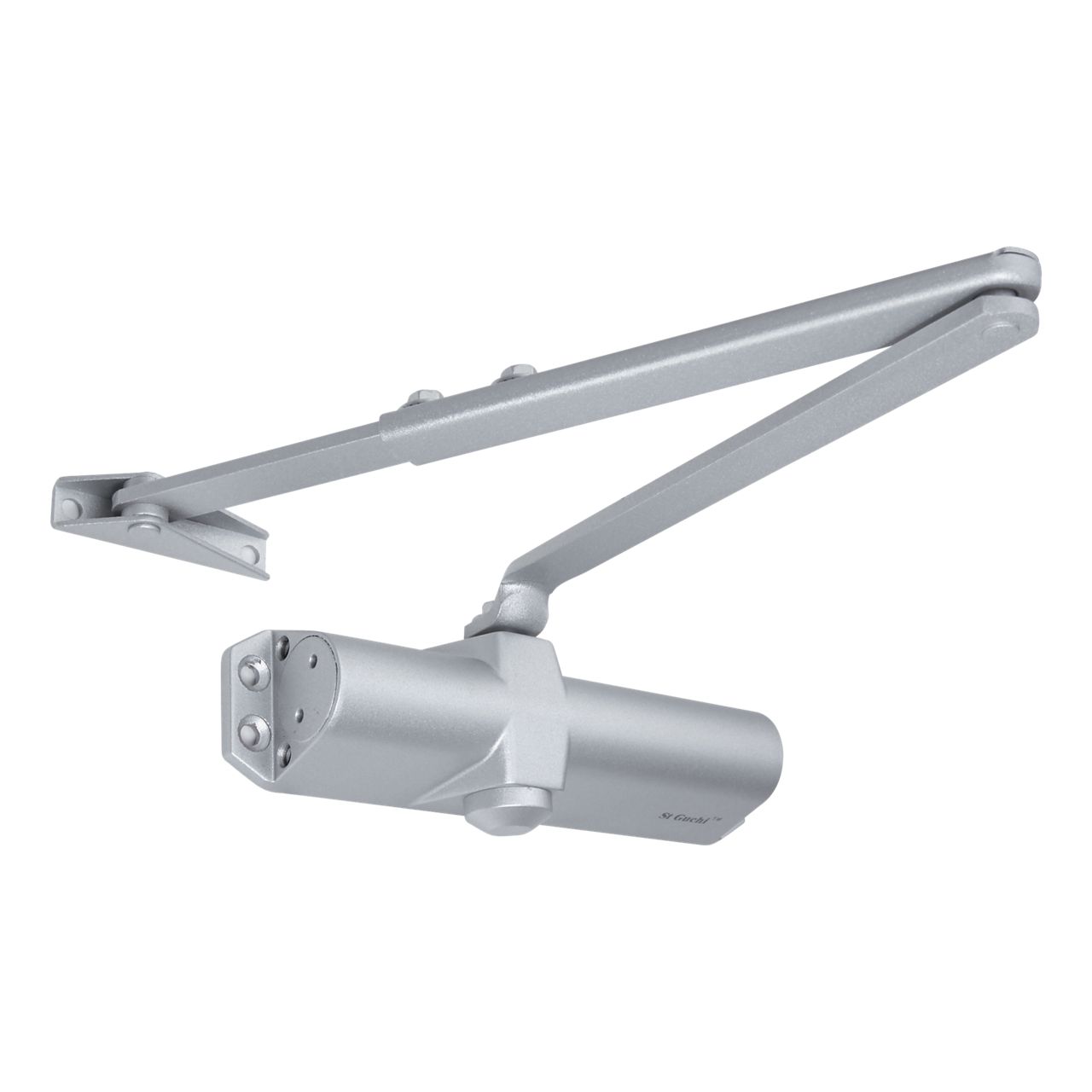

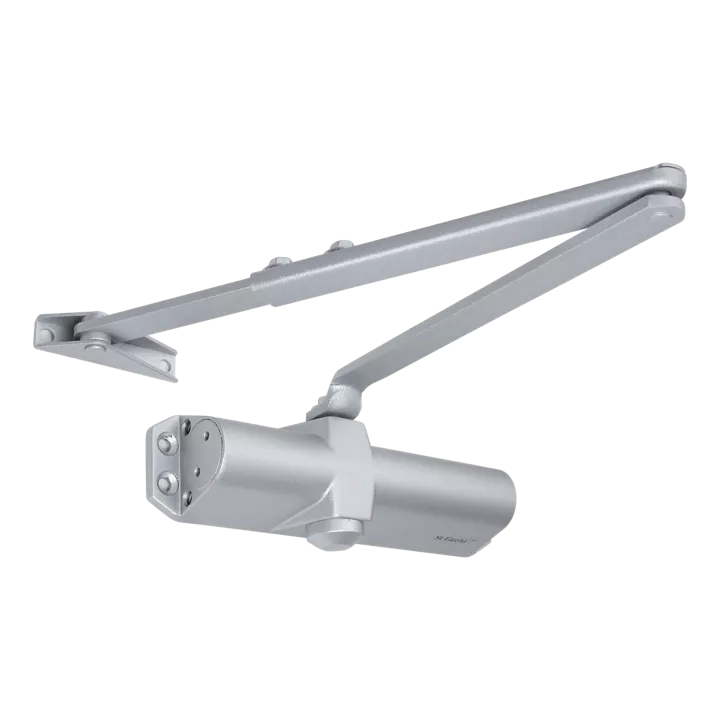

SGDC-62

Technical Information & Function:
Width of Door (mm) Max:

• EN2# : 850
• EN3# : 1000
• EN4# : 1100

Weight of Door (kg) Max:

• EN2# : 40
• EN3# : 60
• EN4# : 80

Delay Action: No
Backcheck Function: No
Hold - Open: No
Max. Open Angle:

• EN2# & EN3#: 180°
• EN4#: 130°

Closing Speed Adjustment: EN2# & EN3#

• Speed 1 : 180° - 10°
• Speed 2 : 10° - 0°

Closing Speed Adjustment: EN4#

• Speed 1 : 130° - 10°
• Speed 2 : 10° - 0°

Applicable Temperature: -20°C - 45°C
Applicability: Left or Right Open Door
Fire Door: No

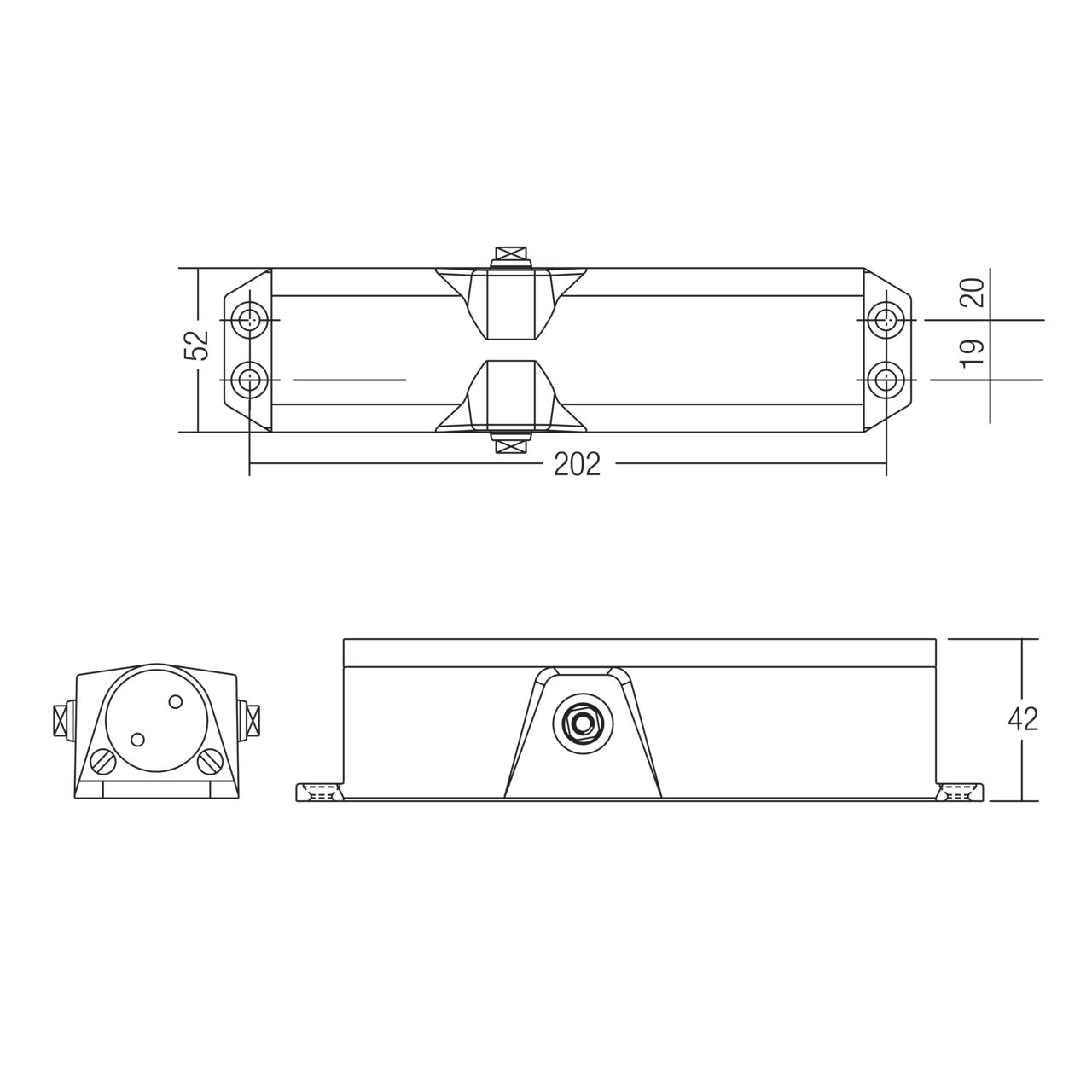

Dimension of Main Body:

• Length: 218
• Width: 52
• Height: 42.5

Weight (kg): 0.785
Passed Durability Test: 500,000 Cycles
