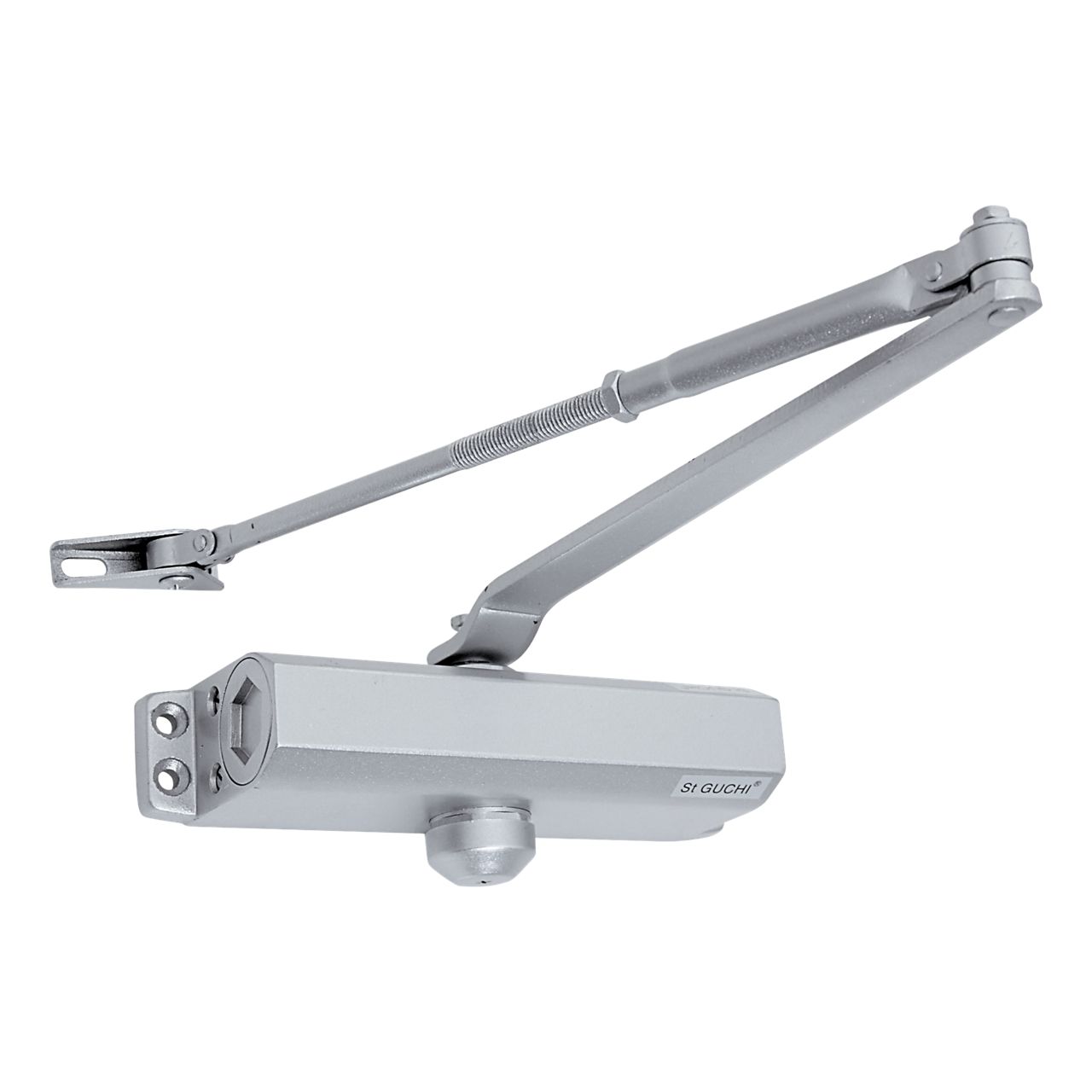

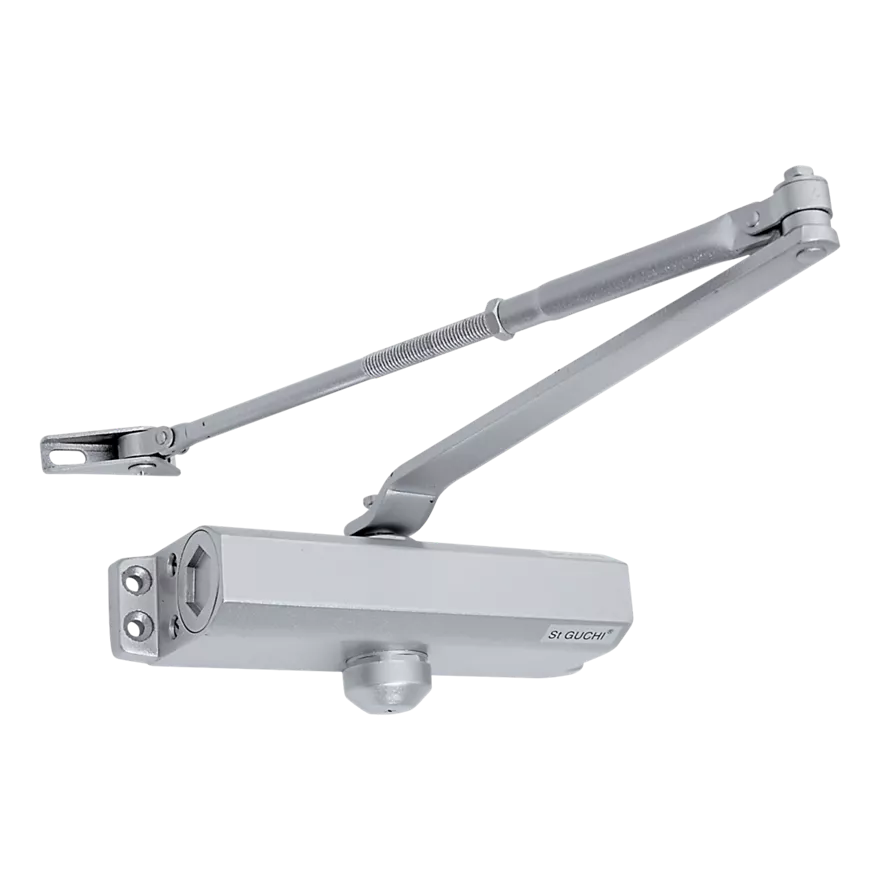

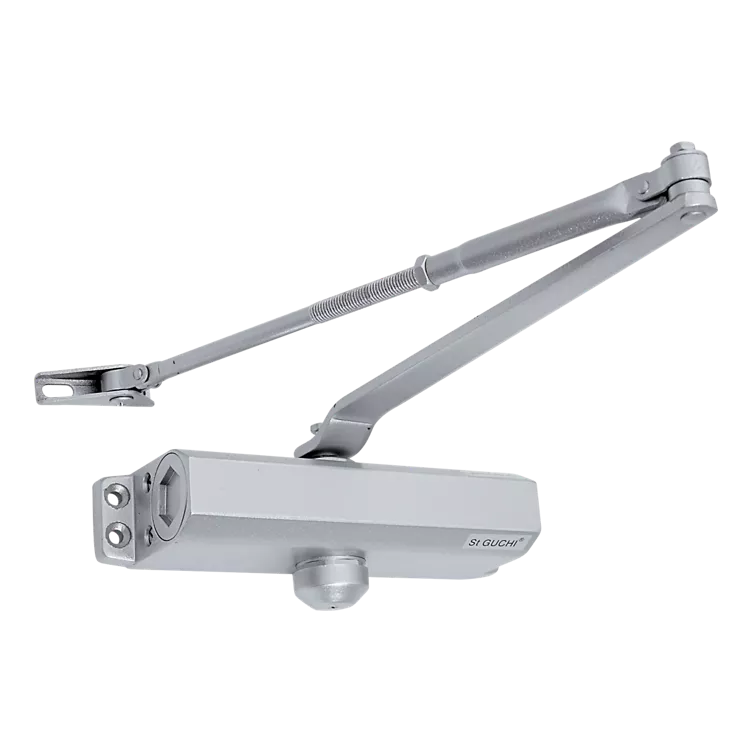

SGDC-536BC

Technical Information & Function:
Width of Door (mm) Max: 1500
Weight of Door (kg) Max: 150
Delay Action: No
Backcheck Function: Yes
Spring Strength Adjustable: 3 - 6
Max. Open Angle: 180°
Hold - Open: No
Closing Speed Adjustment:

• Speed 1: 180° - 15°
• Speed 2 : 15° - 0°

Applicable Temperature: -30- 40
Fire Door: Yes

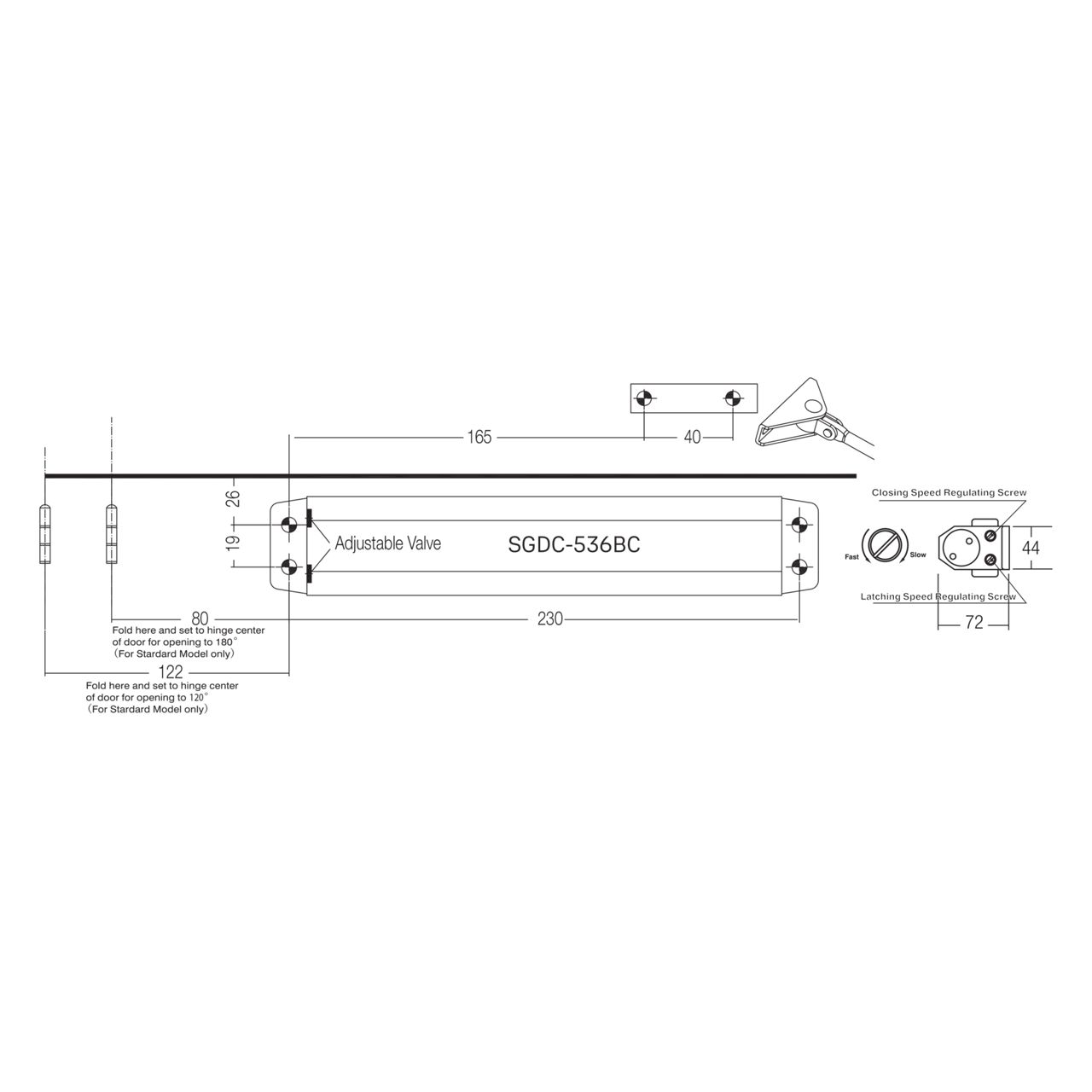

Dimension of Main Body (mm):

• Length: 248
• Width: 44.5
• Height: 72

Weight (kg): 1.56
Passed Durability Test: 500,000 Cycles
