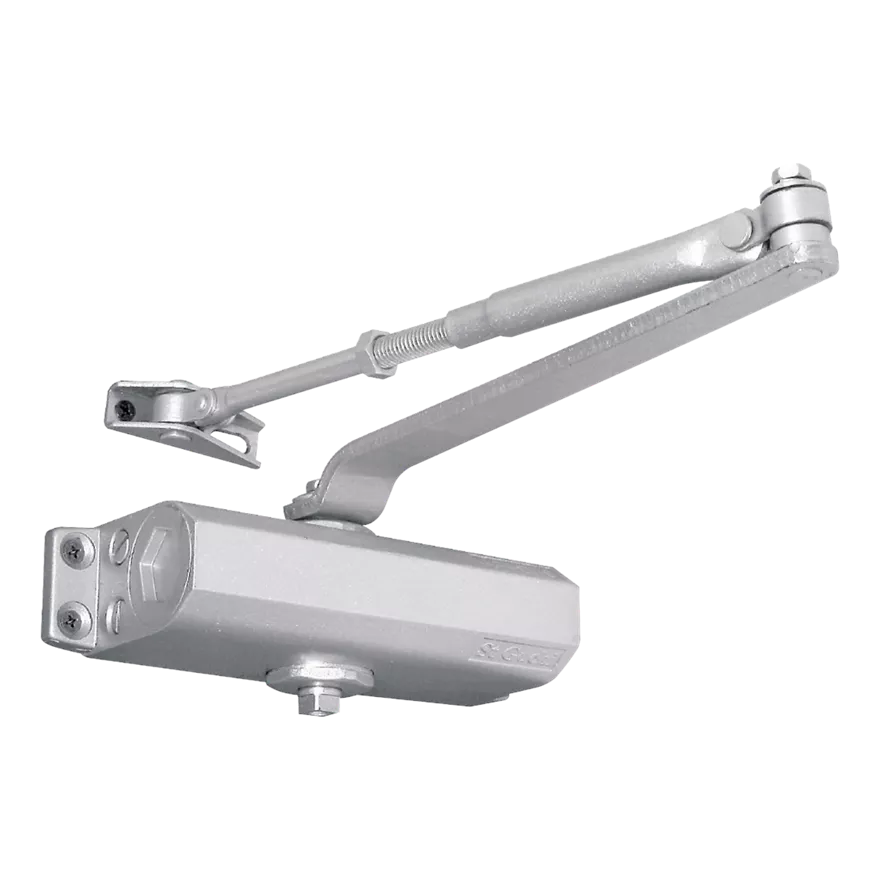

SGDC-52

Technical Information & Function:
Width of Door (mm) Max: 900
Weight of Door (kg) Max: 45
Delay Action: No
Backcheck Function: No
Max. Open Angle: 180°
Hold - Open: No
Closing Speed Adjustment :

• Speed 1: 180° - 15°
• Speed 2: 15° - 0°

Applicable Temperature: -30 - 40
Applicability: No
Fire Door: No

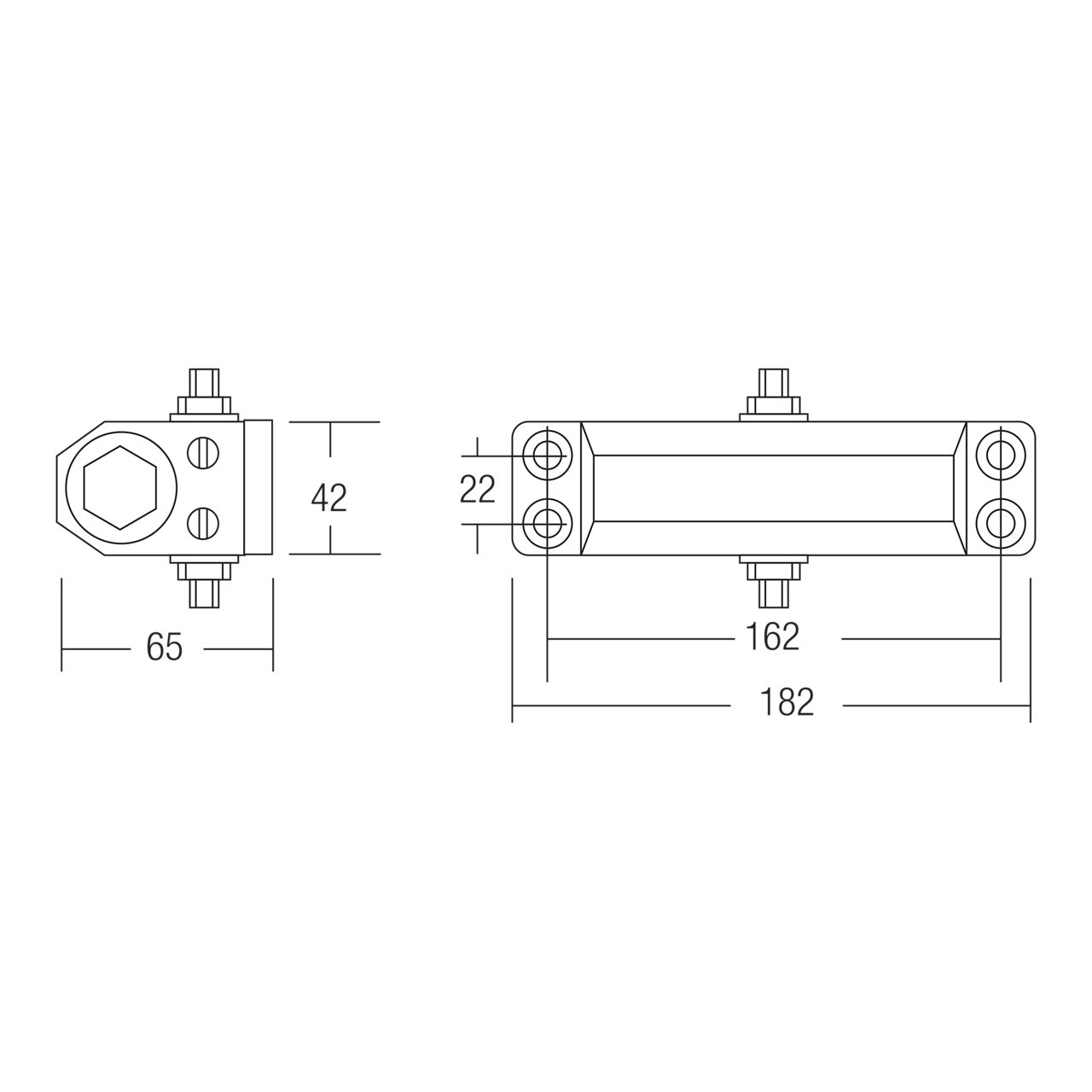

Dimension of Main Body (mm):

• Length: 186
• Width: 44.5
• Height: 67

Weight (kg): 1.13kg
Passed Durability Test: 500,000 Cycles
