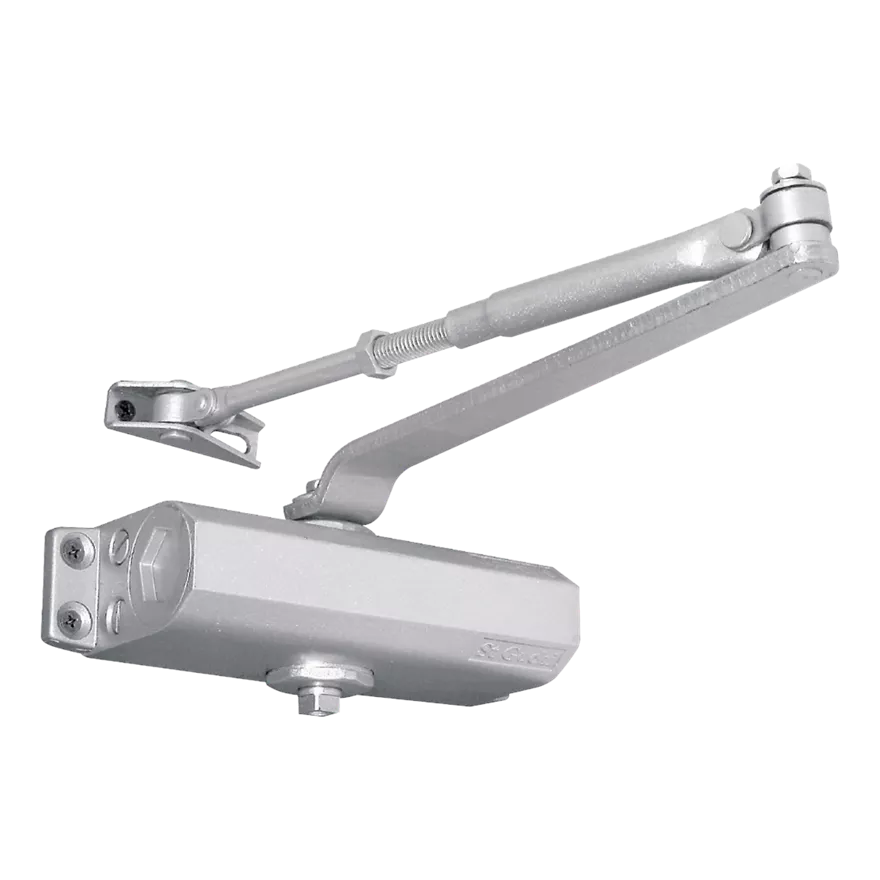

SGDC-51 | StGuchi

Material: Aluminium

Arms Type: Standard Arm

Optional Arms Type: Parallel Arm Bracket

SGDC-51

Technical Information & Function:
Width of Door (mm) Max: 800
Weight of Door (kg) Max: 30
Delay Action: No
Backcheck Function: No
Max. Open Angle: 180°
Hold - Open: No
Closing Speed Adjustment:
Speed 1: 180° - 15°
Speed 2: 15° - 0°
Applicable Temperature: -30 - 40
Applicability: No
Fire Door: No

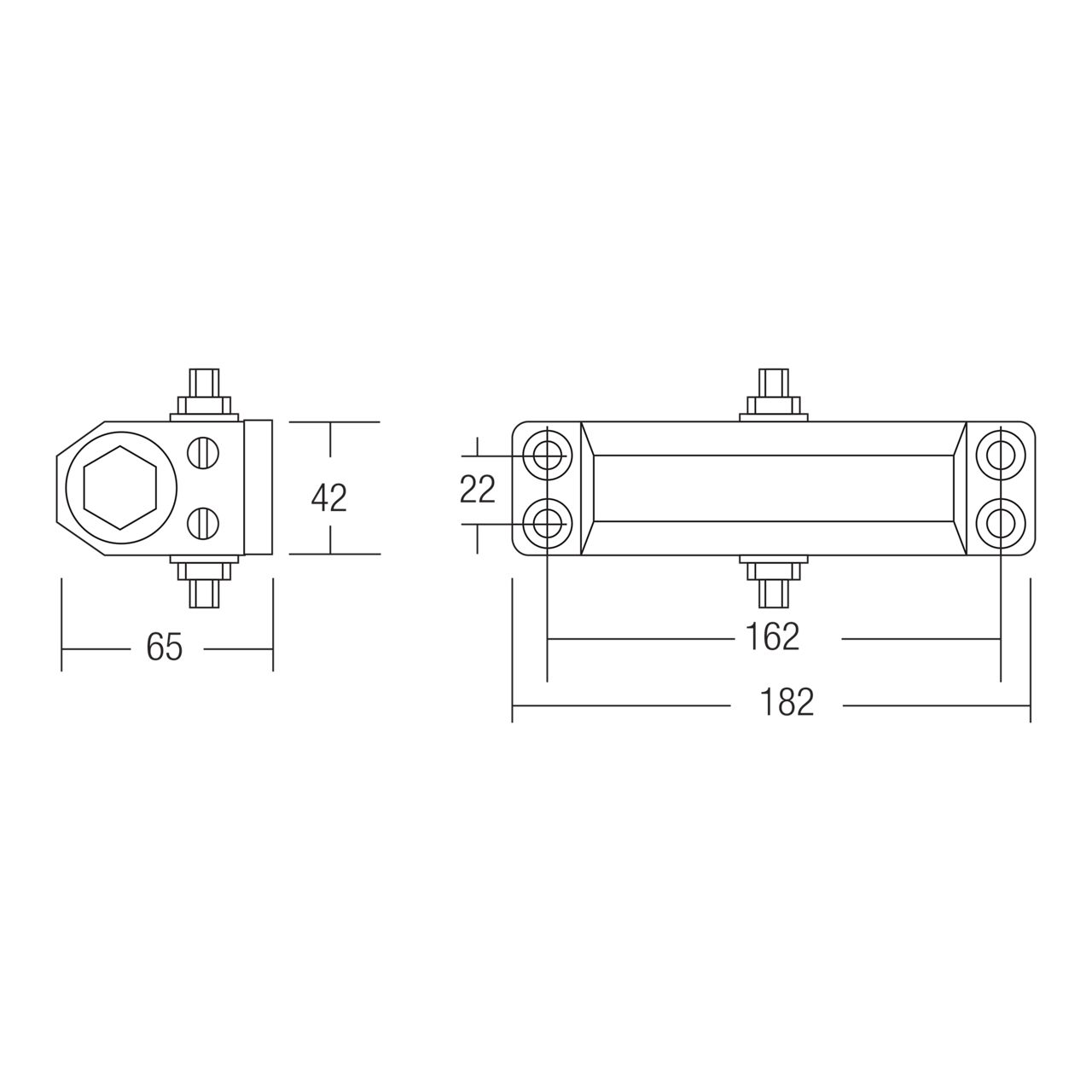

Dimension of Main Body (mm):
Length: 179
Width: 42
Height: 62.5
Weight (kg): 0.905
Passed Durability Test: 500,000 Cycles
Technical Information & Function:
Width of Door (mm) Max: 800
Weight of Door (kg) Max: 30
Delay Action: No
Backcheck Function: No
Max. Open Angle: 180°
Hold - Open: No
Closing Speed Adjustment:
Speed 1: 180° - 15°
Speed 2: 15° - 0°
Applicable Temperature: -30 ~ 40
Applicability: No
Fire Door: No
Dimension of Main Body:
Length: 179
Width: 42
Height: 62.5
Weight (kg): 0.905
Passed Durability Test: 500,000 Cycles
2022 St Guchi Mechanical Lock Catalogue(PDF, 11 MB)
